Whether you are preparing an LTL freight shipment, optimizing warehouse storage racks, or managing international export containers, understanding standard pallet sizes is critical to protecting cargo and controlling logistics costs.
Pallet dimensions dictate your total trailer footprint. If you are shipping non-standard configurations or need to maximize space inside an over-the-road lane, you can calculate exact capacity using our interactive LTL Freight Quote Calculator.
The Universal North American Standard: The official standard pallet size in North America is the GMA (Grocery Manufacturers Association) pallet, which measures 48 × 40 inches (1219 × 1016 mm). This single configuration accounts for over 30% of all commercial shipping platforms handled across the continent.

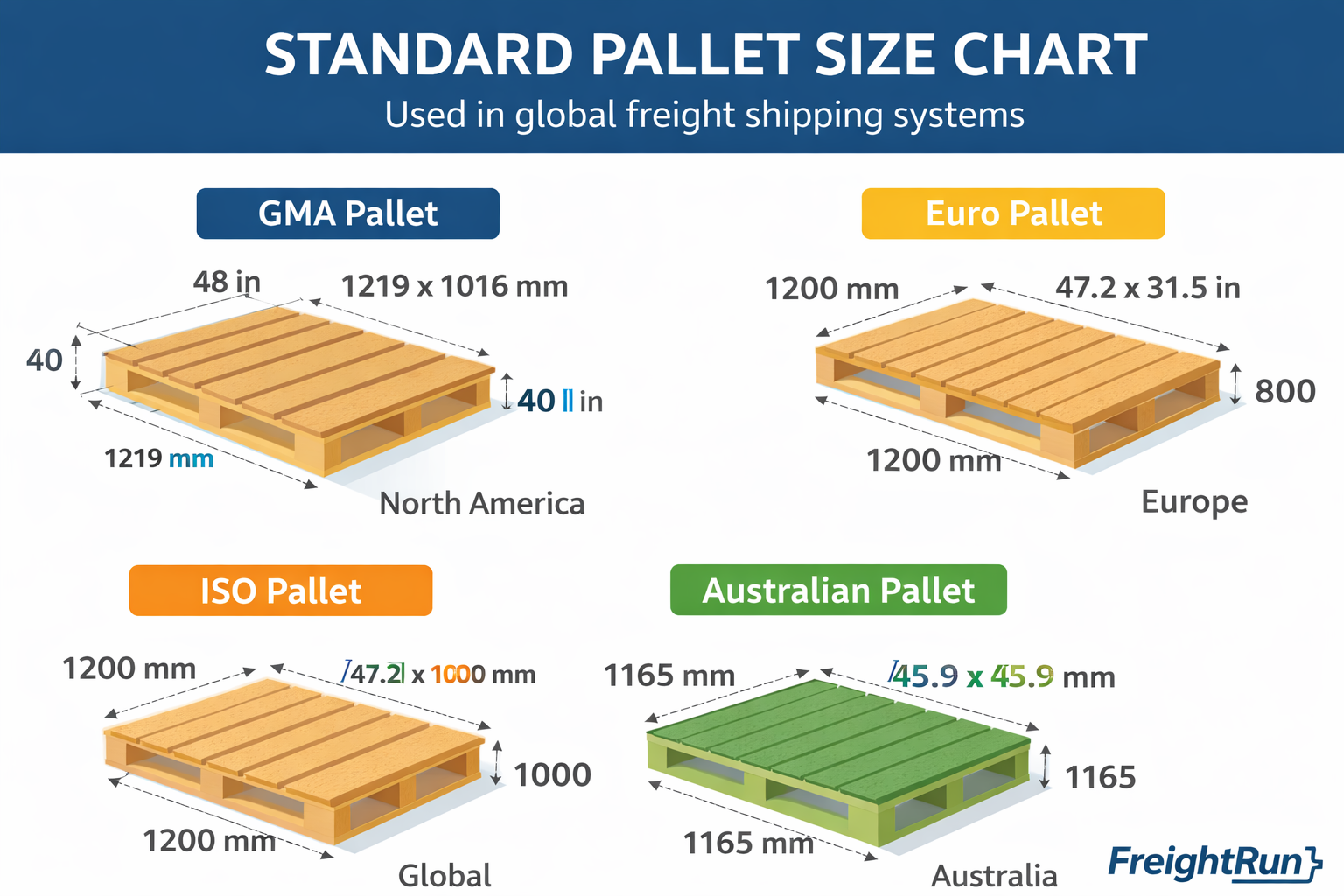

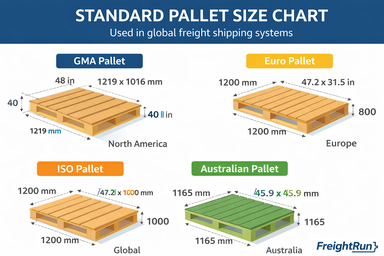

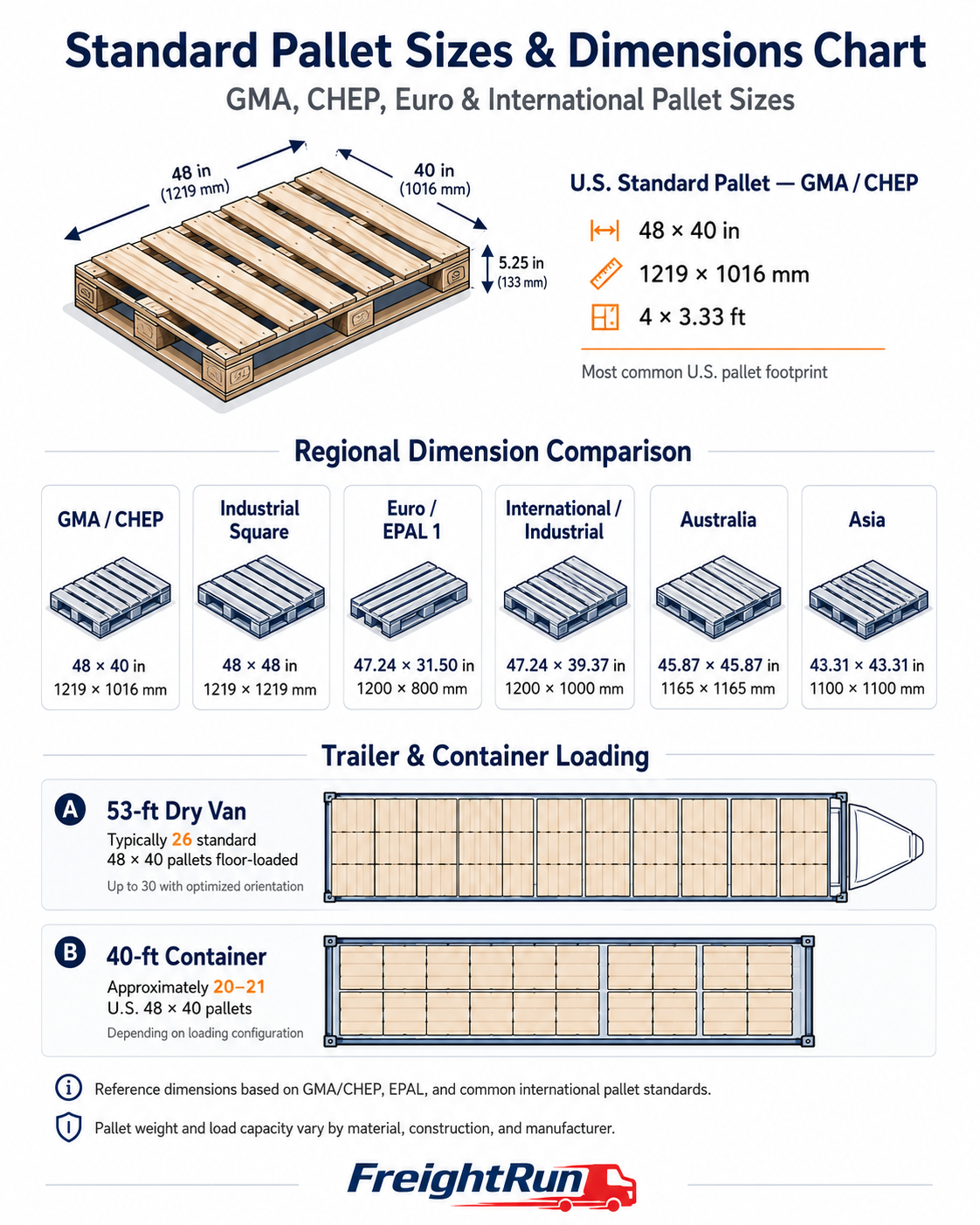

Master Pallet Sizing Chart (Quick Reference)
This consolidated master chart outlines the primary pallet configurations utilized across major global supply chains, including dimensions in both imperial and metric units, load capacities, and regional designations.
| Region / System Standard | Dimensions (Inches) | Metric Dimensions (mm) | Safe Dynamic Load | Common Industry Footprint |
|---|---|---|---|---|
| North America (GMA / CHEP) | 48″ × 40″ | 1219 × 1016 mm | 4,600 lbs / 2,086 kg | Grocery, Retail, General LTL Freight |
| Europe (EUR 1 / EPAL) | 47.24″ × 31.50″ | 1200 × 800 mm | 3,300 lbs / 1,500 kg | European Warehousing & EU Rail Loop |
| International (ISO Export) | 47.24″ × 39.37″ | 1200 × 1000 mm | 2,750 lbs / 1,250 kg | Global Export Freight & Containers |
| Australia Standard | 45.90″ × 45.90″ | 1165 × 1165 mm | 4,400 lbs / 2,000 kg | Australian Rail & Industrial Loops |
| Asia Standard | 43.30″ × 43.30″ | 1100 × 1100 mm | 2,600 lbs / 1,180 kg | Asian Manufacturing & Ocean Freight |
North American Pallet Standards & Industrial Variations
While the 48" x 40" GMA platform dominates the landscape, North American logistics utilizes five other recognized configurations tailored to specific industrial sectors.
Matching your freight to the correct industry-specific footprint ensures seamless distribution, prevents product damage, and ensures accurate freight class determination.
Recognized ISO / North American Footprints
- 48″ × 48″ (1219 × 1219 mm): Built primarily for liquid drums and chemical transport, this square configuration prevents heavy 55-gallon liquid containers from overhanging edges and destabilizing during sudden transit shifts.
- 48″ × 42″ (1219 × 1067 mm): Widely utilized throughout the telecommunications, utility, and heavy chemical manufacturing industries to optimize heavy equipment balancing.
- 42″ × 42″ (1067 × 1067 mm): The standard industrial format for shipping paint, heavy protective coatings, and industrial manufacturing machinery components safely.
- 40″ × 48″ (1016 × 1219 mm): A unique rotated format frequently deployed in military logistics, aerospace defense handling, and specialized heavy machinery transport loops to match military aircraft payloads.
- 36″ × 36″ (914 × 914 mm): A compact format optimized for the commercial beverage industries and custom retail grocery floor displays to streamline manual material handling in tight retail spaces.
Logistics Tip on CHEP vs. GMA: You will frequently hear the terms CHEP and GMA used interchangeably. Physically, they share the exact same 48" x 40" footprint. The difference is operational: GMA pallets are typically purchased and owned by the shipper, whereas CHEP pallets are distinctive blue, heavy-duty blocks rented from a global pooling network.
The European Pallet System (Euro Pallets)
The European market operates primarily on the Euro Pallet (EUR) or EPAL system. These platforms are explicitly designed to fit seamlessly into European train cars and standard Euro-truck box trailers without wasted space.
European trailers typically measure 2.45 meters in internal width, meaning you can fit either two EUR 1 pallets lengthwise or three side by side widthwise.
The 4 Standard Euro Pallet Sizes
- EUR 1 (800 × 1200 mm): The most common European standard. Fits tight retail doorways and small warehouse aisle configurations.
- EUR 2 (1200 × 1000 mm): Matches the exact footprint of the standard international ISO export configuration.
- EUR 3 (1000 × 1200 mm): An alternative, inverted version of the EUR 2 layout used primarily for heavy component manufacturing.
- EUR 6 (800 × 600 mm): A half-pallet configuration used extensively for direct grocery-to-floor product merchandising.

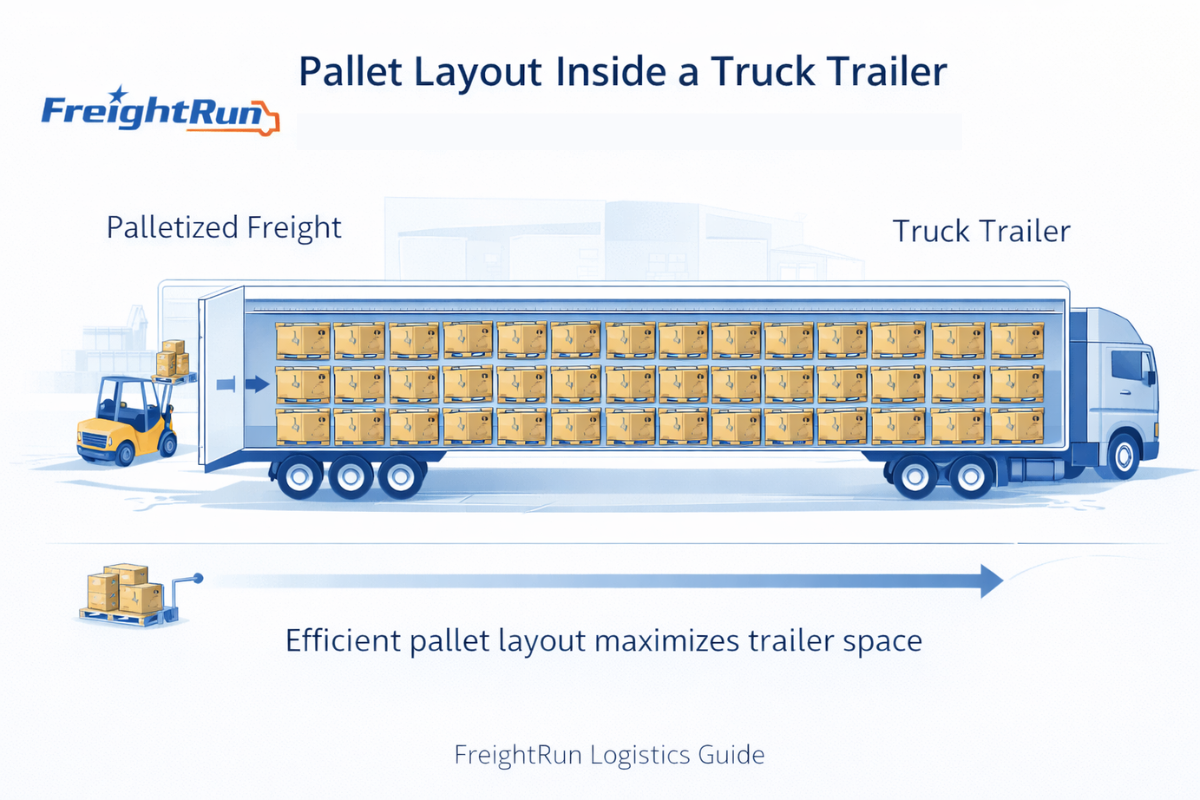

How Many Pallets Fit in a Shipping Container or Trailer?
Maximizing your trailer volume prevents "dead space" billing charges, pinches your logistics margins, and keeps your overall transportation costs as low as possible. Standard dry vans and ocean container layouts accommodate standard 48" x 40" North American pallets in the following typical configurations:
- 53-Foot Standard Dry Van: Accommodates 26 to 30 pallets single-layered on the floor, depending on whether they are straight-loaded or turned/interlocked to fit side by side in alternating columns to maximize the trailer's interior width.
- 48-Foot Flatbed / Dry Van: Accommodates 24 standard pallets single-stacked cleanly across the flat trailer deck or secured within the dry van walls.
- 40-Foot Ocean Freight Container: Accommodates 20 to 21 standard pallets in a single tier without risking interior wall collisions or shifting during rough sea transits.
- 20-Foot Ocean Freight Container: Accommodates 10 standard pallets arranged flat across the container floor, leaving specific clearance for secure latch blocking.
Once you know your exact pallet dimensions and packaging specs, you can instantly estimate shipping costs from top national carriers with our automated FreightRun freight quote calculator.
Pallet Sizing and Logistics FAQs
What is the difference between static and dynamic load capacity?
Static load capacity refers to the maximum weight a pallet can support when resting completely stationary on a flat floor. Dynamic load capacity represents the maximum weight the platform can safely hold while being actively moved by a forklift, pallet jack, or automated conveyor system.
How high can you safely stack a standard pallet for LTL shipping?
For standard Less-Than-Truckload transit, the general rule of thumb is a maximum stack height of 60 to 72 inches for a single-pallet configuration. Keeping stack heights within this range ensures trailer stability over the road and prevents regional carriers from rejecting your freight at the terminal dock.
Are wooden pallets or plastic pallets better for international export?
Wooden pallets are highly cost-effective and easily repairable, but for global export, they must be heat-treated and stamped in strict compliance with ISPM 15 regulations to prevent pest migration. Plastic pallets require no ISPM 15 compliance stamps, are lighter, and are completely waterproof, making them ideal for air freight or clinical pharmaceutical environments, though they carry a much higher upfront cost per unit.
