Freight Density Calculator for LTL Shipping
Freight density matters because LTL carriers need to understand how much trailer space your freight occupies relative to its weight. A compact, heavy shipment is handled differently from a large, lightweight one that fills trailer space quickly.
Use this page to calculate freight density, understand the freight class density chart, avoid common measurement mistakes, and move from calculation to quote with more accurate shipment information.
Calculated your density? Get an LTL freight quote with FreightRun.
What Is a Freight Density Calculator?
A freight density calculator helps shippers calculate pounds per cubic foot by dividing shipment weight by cubic volume. In LTL shipping, density helps estimate freight class, which carriers use — along with handling, stowability, and liability — to price and classify freight.
How to Use the FreightRun Freight Density Calculator
To calculate freight density you need two things: the total shipment weight and the total shipment volume in cubic feet. For palletized freight, always measure the full shipping unit — not just the product. Include the pallet, packaging, crate, boxes, and any overhang.
Step-by-Step
Step 1 — Measure the length, width, and height of the full shipping unit in inches.
Step 2 — Multiply length × width × height to get cubic inches.
Step 3 — Divide by 1,728 to convert to cubic feet.
Step 4 — Divide the total shipment weight in pounds by the cubic feet.
Step 5 — Use the result to estimate freight class from the density chart below.

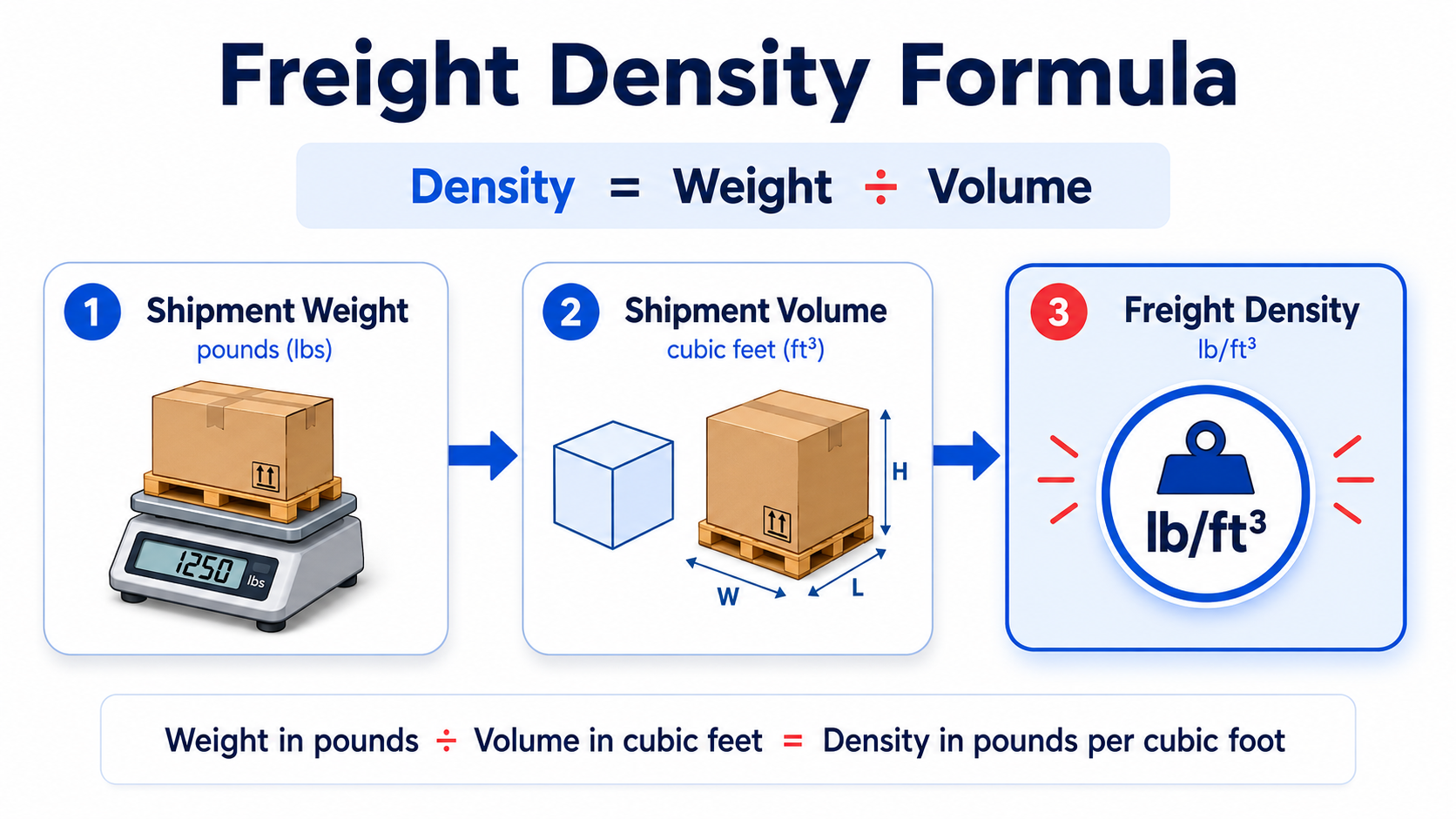

Freight Density Formula
Freight density is calculated by dividing shipment weight by shipment volume.
Freight Density = Shipment Weight ÷ Cubic Feet
Cubic Feet = Length × Width × Height ÷ 1,728
The result is expressed in pounds per cubic foot (PCF).
Freight Density Example
A shipment weighing 500 pounds measuring 72" × 40" × 48":
Step 1 — Cubic inches: 72 × 40 × 48 = 138,240 cubic inches
Step 2 — Cubic feet: 138,240 ÷ 1,728 = 80 cubic feet
Step 3 — Density: 500 ÷ 80 = 6.25 PCF

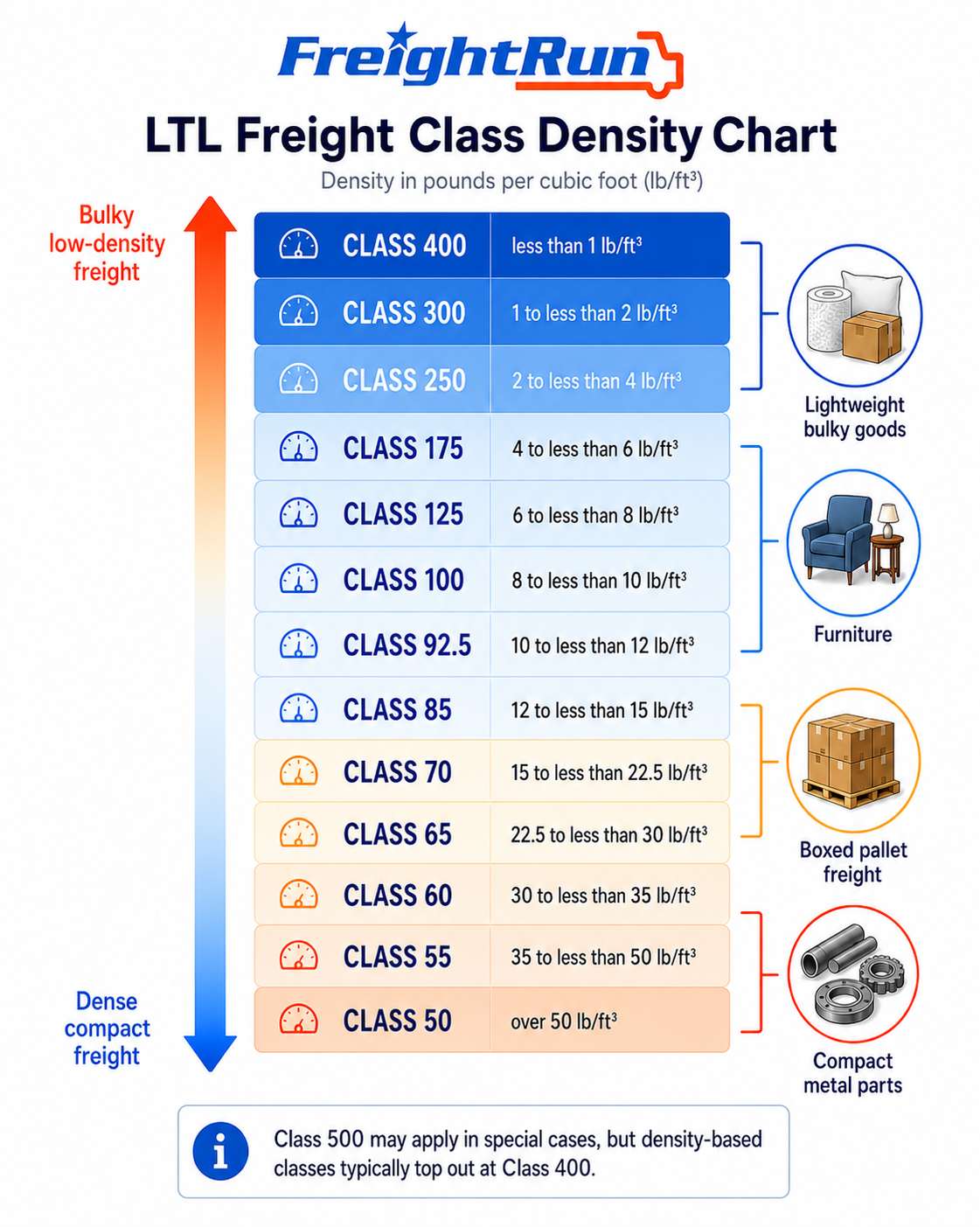

Freight Density Chart and Estimated Freight Class
Use this freight density chart as a general reference when estimating LTL freight class from density. This chart is based on NMFTA density guideline ranges — treat it as an estimate, not a final classification.
| Estimated Freight Class | Density (lbs per cubic foot) |
| 50 | 50 and higher |
| 55 | 35 to 49.99 |
| 60 | 30 to 34.99 |
| 65 | 22.5 to 29.99 |
| 70 | 15 to 22.49 |
| 77.5 | 13.5 to 14.99 |
| 85 | 12 to 13.49 |
| 92.5 | 10.5 to 11.99 |
| 100 | 9 to 10.49 |
| 110 | 8 to 8.99 |
| 125 | 7 to 7.99 |
| 150 | 6 to 6.99 |
| 175 | 5 to 5.99 |
| 200 | 4 to 4.99 |
| 250 | 3 to 3.99 |
| 300 | 2 to 2.99 |
| 400 | 1 to 1.99 |
| 500 | Less than 1 |
Once you have your estimated density and freight class, compare LTL freight rates with FreightRun.
How Density Affects LTL Freight Class
Freight density helps carriers understand how efficiently your shipment uses trailer space. In general, higher-density freight occupies less space per unit weight and may be assigned a lower freight class. Lower-density freight occupies more space per unit weight and may be assigned a higher freight class. Higher freight classes usually cost more to ship.
Density is important, but it is not the only factor. NMFC classification also considers:
- Handling — Is the freight difficult, fragile, or unusual to move?
- Stowability — Can it be loaded easily with other freight?
- Liability — Is it high-value, damage-prone, or theft-sensitive?
- Density — How much does it weigh compared with the space it occupies?
Freight Density vs Freight Class
Freight density and freight class are closely related but not the same thing.
| Term | What It Means | Why It Matters |
| Freight density | Weight divided by cubic feet | Helps estimate class and trailer-space usage |
| Freight class | NMFC number from 50 to 500 | Used by LTL carriers for pricing and classification |
| NMFC code | Commodity-specific classification code | Identifies the correct class for specific freight |
| Cubic feet | Shipment volume | Used to calculate density |
| Linear feet | Trailer floor space used | Important for long or non-stackable freight |
A density calculator helps you prepare better shipment information. It does not replace proper NMFC classification when a commodity requires a specific class or code.
How to Measure Palletized Freight
Accurate measurement is one of the easiest ways to avoid quote errors, reclassification, and billing adjustments. For palletized freight, always measure the longest length, widest width, tallest height, full pallet and packaging, any overhang, and crates, cartons, wrap, and protective material.
Do not measure only the product. Carriers care about the total trailer space the shipment occupies. If boxes sit on a 48-inch pallet and the stacked shipment is 52 inches tall including the pallet, use 52 inches as the height.
Common Freight Density Mistakes
| Mistake | Why It Matters | Better Approach |
| Measuring only the product | Pallets and packaging add cube | Measure the full shipping unit |
| Using estimated weight | Density becomes inaccurate | Use actual shipment weight |
| Forgetting overhang | Overhang increases usable dimensions | Measure the widest point |
| Ignoring pallet height | Pallet height affects cubic feet | Include pallet and packaging |
| Assuming density equals final class | NMFC also considers handling, stowability, liability | Use density as an estimate, then verify class |
Metric Freight Density: kg/m³ to lb/ft³
Some shippers work with metric units, especially when working with international suppliers. US LTL freight density is expressed as pounds per cubic foot (PCF). Metric freight density is expressed as kilograms per cubic meter.
| Conversion | Formula |
| kg/m³ to lb/ft³ | kg/m³ × 0.0624 |
| lb/ft³ to kg/m³ | lb/ft³ × 16.0185 |
Example: 100 kg/m³ × 0.0624 = 6.24 lb/ft³
What to Do After Calculating Freight Density
After calculating freight density, use the result to prepare a more accurate LTL quote. Before requesting a quote, confirm your pickup and delivery ZIP codes, total shipment weight, number of pallets or handling units, full shipment dimensions, estimated freight class, commodity description, accessorial needs, and whether the freight is stackable.
Get a Freight QuoteFrequently Asked Questions
What is a freight density calculator?
A freight density calculator measures how much a shipment weighs compared with the space it occupies. It divides shipment weight by cubic feet to produce pounds per cubic foot, helping estimate freight class.
How do you calculate freight density?
Measure length, width, and height, then multiply to get cubic inches. Divide by 1,728 to convert to cubic feet. Then divide the shipment weight by cubic feet.
Can you calculate freight class based on density?
Yes, density can help estimate freight class for density-based commodities. However, NMFC classification also considers handling, stowability, and liability, so the final class may differ from a density estimate alone.
What is a good freight density for LTL shipping?
Higher-density freight generally receives a lower freight class. Freight at 50 PCF or higher may fall near Class 50, while freight under 1 PCF may fall near Class 500 under NMFTA density guidelines.
Do I include the pallet when calculating freight density?
Yes. Include the pallet, packaging, and the full outside dimensions of the shipping unit. If freight overhangs the pallet, measure the widest and tallest points.
Why does freight density matter for LTL shipping?
LTL carriers share trailer space between multiple shipments. Density helps carriers understand how efficiently freight uses that space relative to its weight.
Is freight density the same as dimensional weight?
No. Freight density measures actual weight per cubic foot and is used in LTL classification. Dimensional weight is a pricing method that estimates billable weight based on package dimensions. Both relate to space usage but are different calculations.
Can I use metric units for freight density?
Yes. Multiply kg/m³ by 0.0624 to convert to lb/ft³. Multiply lb/ft³ by 16.0185 to convert to kg/m³.
